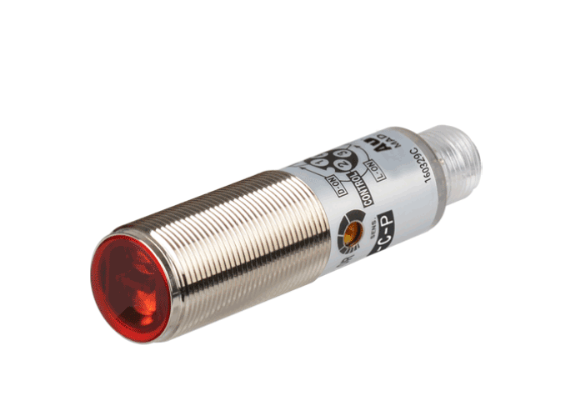

سنسور نوری سری BRQT100-DDTA-C-P آتونیکس

نقد و بررسی

Sensing type: Diffuse reflective type
Sensing distance: 100mm
Sensing target: Opaque, Translucent material
Light source: Infrared LED(850nm)
Response time: Max. 1ms
Power supply: 10-30VDC ±10%(ripple P-P: max. 10%)
Current consumption: Max. 30mA
Sensitivity adjustment: Sensitivity adjuster
Operation mode :Light ON/Dark ON(set by control wire)
Control output: PNP open collector
Connection type: Connector type(M12)
Environment_Ambient illumination: Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination)
Environment_Ambient temperature: -25 to 60℃, storage: -30 to 70℃
Protection structure: IP67(IEC standard), IP69K(DIN standard)
Environment_Ambient humidity: 35 to 85% RH, storage: 35 to 85% RH
Hysteresis(distance): Max. 20% at rated sensing distance
Material: ㆍCase: stainless steel 316L
ㆍLens, Lens cover: polymethyl methacrylate acrylic
Weight: Approx. 140g(approx. 30g)
